MRWB-2000 Hydrostatic Rotary Table
Summary
MRWB-2000 hydrostatic rotary table: φ1980mm worktable, static stiffness >3000kgf/μm, static plane precision 0.005mm, table load > 100Tons, rotation speed 0~200 r.p.m..
Keywords:
mrwb-2000
MRWB-2000
hydrostatic rotary table
liquid hydrostatic rotary table
hydrostatic turntable
precision rotary table
Why Choose Us
- ISO 9001:2025 Certified
- Global Export for 26 Years
Available Languages
🇬🇧 English

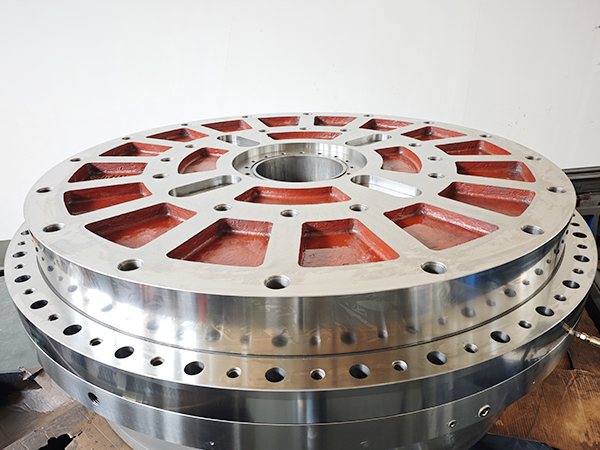

MRWB-2000 Hydrostatic Rotary Table
The MRWB-2000 hydrostatic rotary table supports the worktable on a pressurized oil film instead of conventional rolling bearings, giving zero metal contact, no wear and strong vibration damping. It delivers a static stiffness of >3000kgf/μm and a static plane precision of 0.005mm, with a table load capacity of > 100Tons and a rotation speed range of 0~200 r.p.m. — suited to precision machining, grinding and measurement applications.
Key Features
- Hydrostatic oil-film support — zero metal contact, zero wear, excellent vibration absorption and long-term precision stability
- High static stiffness — >3000kgf/μm
- Ultra-high plane precision — 0.005mm
- Heavy load capacity — > 100Tons
- Wide rotation speed range — 0~200 r.p.m.
Technical Parameters
| Parameter | Value |
|---|---|
| Model | MRWB-2000 |
| Worktable Size | φ1980mm |
| Overall Height | 340mm(台面上) +330mm |
| Static Stiffness | >3000kgf/μm |
| Static Plane Precision | 0.005mm |
| Table Load | > 100Tons |
| Rotation Speed | 0~200 r.p.m. |
