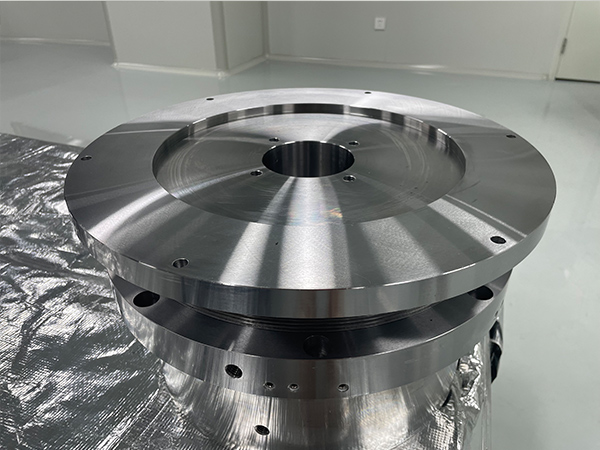

MRWB-430 Hydrostatic Rotary Table
The MRWB-430 hydrostatic rotary table supports the worktable on a pressurized oil film instead of conventional rolling bearings, giving zero metal contact, no wear and strong vibration damping. It delivers a static stiffness of > 200kgf/μm and a static plane precision of < 0.001mm, with a table load capacity of > 4000kg and a rotation speed range of 0~1000 r.p.m. — suited to precision machining, grinding and measurement applications.
Key Features
- Hydrostatic oil-film support — zero metal contact, zero wear, excellent vibration absorption and long-term precision stability
- High static stiffness — > 200kgf/μm
- Ultra-high plane precision — < 0.001mm
- Heavy load capacity — > 4000kg
- Wide rotation speed range — 0~1000 r.p.m.
Technical Parameters
| Parameter | Value |
|---|---|
| Model | MRWB-430 |
| Worktable Size | φ430mm |
| Overall Height | 279mm |
| Static Stiffness | > 200kgf/μm |
| Static Plane Precision | < 0.001mm |
| Table Load | > 4000kg |
| Rotation Speed | 0~1000 r.p.m. |
